Special Purpose Isolators | Isolators | Innova Eparts Industries

Mfr Part	Quantity	Price	Series	Package	Type	NumberofChannels	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	Current-Output/Channel	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType	Package/Case	SupplierDevicePackage	ApprovalAgency	Voltage-Forward(Vf)(Typ)
HCPL-2602 OPTOISO 3.75KV LINE RX 8DIP Broadcom	17,510	1: $6.372 10: $6.2446 100: $6.0534 1000: $5.8622 10000: $5.6074																			RFQ
PC942 OPTOISO 5KV OPIC 8DIP Sharp Microelectronics	19,535		OPIC™	Tube	Power Transistor Driver	1	5000Vrms	10kV/µs	DC	500mA, 600mA	5µs, 5µs	200ns, 100ns	25 mA	5.4V ~ 13V	-20°C ~ 80°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	UR	1.1 V	RFQ
HCPL-4200-000E OPTOISO 3.75KV RECEIVER 8DIP Broadcom	19,983	1: $9.5157 10: $9.3254 100: $9.0399 1000: $8.7544 10000: $8.3738																			RFQ
HCPL-4200 OPTOISO 3.75KV RECEIVER 8DIP Broadcom	15,443	1: $9.8784 10: $9.6808 100: $9.3845 1000: $9.0881 10000: $8.693																			RFQ
HSSR-7110 OPTOISO 1.5KV POWER MOSFET 8DIP Broadcom	4,792	1: $101.44 10: $99.4112 100: $96.368 1000: $93.3248 10000: $89.2672		Cut Tape																	RFQ

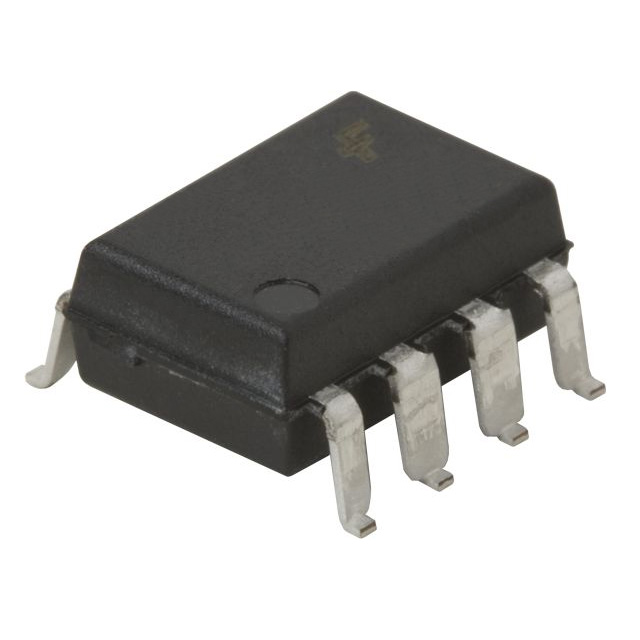

MID400SD OPTOISO 2.5KV OPN COLLECTOR 8SMD onsemi	17,299	1: $5.9512 10: $5.8322 100: $5.6536 1000: $5.4751 10000: $5.2371	-	Cut Tape (CT)																	RFQ

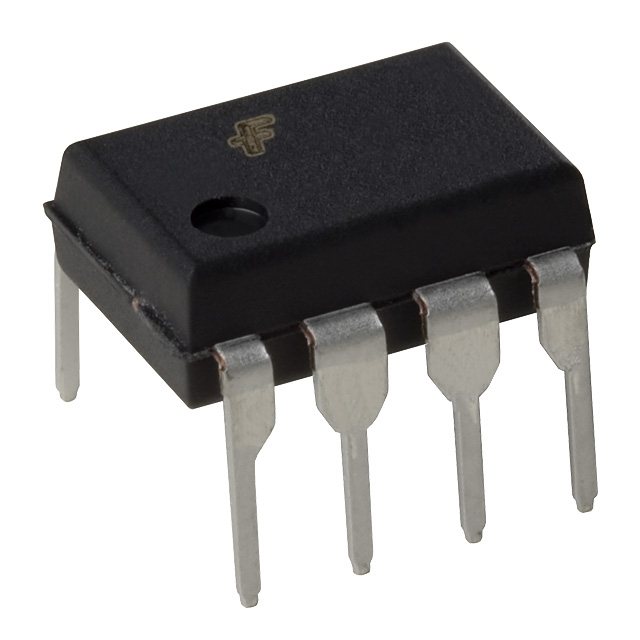

MID400 OPTOISO 2.5KV OPN COLLECTOR 8DIP onsemi	18,955		-	Tube																	RFQ
MID400S OPTOISO 2.5KV OPN COLLECTOR 8SMD onsemi	19,933	1: $8.1656 10: $8.0023 100: $7.7573 1000: $7.5124 10000: $7.1857	-	Tube																	RFQ
HCPL-4100 OPTOISO 3.75KV TRANSMITTER 8DIP Broadcom	11,969	1: $11.2896 10: $11.0638 100: $10.7251 1000: $10.3864 10000: $9.9348	-	Tube	Current Loop Transmitter	1	3750Vrms	1kV/µs	Logic	30mA	1.6µs, 1µs	16ns, 23ns	-	4.5V ~ 20V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	-	RFQ
HCPL-4200 OPTOISO 3.75KV RECEIVER 8DIP Broadcom	16,639	1: $9.7608 10: $9.5656 100: $9.2728 1000: $8.9799 10000: $8.5895	-	Tube	Current Loop Receiver	1	3750Vrms	1kV/µs	DC	25mA	1.6µs, 1µs	55ns, 15ns	-	4.5V ~ 20V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	-	RFQ

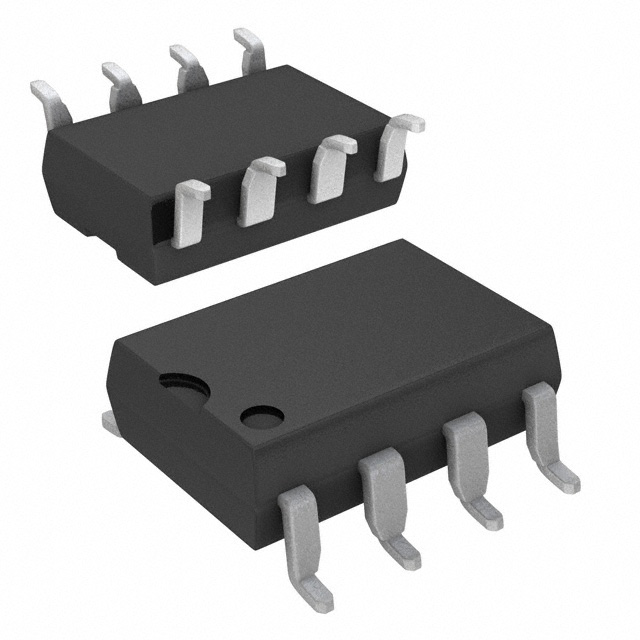

HCPL-2602-300E OPTOISO 3.75KV LINE RX 8DIP GW Broadcom	10,642	1: $6.344 10: $6.2171 100: $6.0268 1000: $5.8365 10000: $5.5827	-	Tube	Line Receiver	1	3750Vrms	1kV/µs	AC, DC	50mA	75ns, 75ns	24ns, 10ns	60 mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-DIP Gull Wing	CSA, UR	2.3 V	RFQ
HCPL-4200-000E OPTOISO 3.75KV RECEIVER 8DIP Broadcom	19,647	1: $9.1665 10: $8.9832 100: $8.7082 1000: $8.4332 10000: $8.0665	-	Tube	Current Loop Receiver	1	3750Vrms	1kV/µs	DC	25mA	1.6µs, 1µs	55ns, 15ns	-	4.5V ~ 20V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	-	RFQ
HSSR-7110 OPTOISO 1.5KV POWER MOSFET 8DIP Broadcom	4,231	1: $114.9 10: $112.602 100: $109.155 1000: $105.708 10000: $101.112	-	Tube	Power MOSFET	1	1500VDC	-	DC	1.6A	6ms, 0.25ms	-	20 mA	-	-55°C ~ 125°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	-	1.24 V	RFQ
HSSR-7110#300 OPTOISO 1.5KV PWR MOSFET 8SMD GW Broadcom	4,441	1: $109.45 10: $107.261 100: $103.9775 1000: $100.694 10000: $96.316	-	Tube	Power MOSFET	1	1500VDC	-	DC	1.6A	6ms, 0.25ms	-	20 mA	-	-55°C ~ 125°C	Surface Mount	8-SMD, Gull Wing	8-SMD Gull Wing	-	1.24 V	RFQ
HCPL-4100-000E OPTOISO 3.75KV TRANSMITTER 8DIP Broadcom	13,863	1: $7.3332 10: $7.1865 100: $6.9665 1000: $6.7465 10000: $6.4532	-	Tube	Current Loop Transmitter	1	3750Vrms	1kV/µs	Logic	30mA	1.6µs, 1µs	16ns, 23ns	-	4.5V ~ 20V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	-	RFQ
HCPL-2602-000E OPTOISO 3.75KV LINE RX 8DIP Broadcom	17,588	1: $7.074 10: $6.9325 100: $6.7203 1000: $6.5081 10000: $6.2251	-	Tube	Line Receiver	1	3750Vrms	1kV/µs	AC, DC	50mA	75ns, 75ns	24ns, 10ns	60 mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	2.3 V	RFQ
HCPL-4100-500E OPTOISO 3.75KV TRNSMTR 8DIP GW Broadcom	13,018	1: $8.6142 10: $8.4419 100: $8.1835 1000: $7.9251 10000: $7.5805	-	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Current Loop Transmitter	1	3750Vrms	1kV/µs	Logic	30mA	1.6µs, 1µs	16ns, 23ns	-	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-DIP Gull Wing	CSA, UR	-	RFQ
HCPL-4200-500E OPTOISO 3.75KV RECEIVER 8DIP GW Broadcom	13,163	1: $8.5263 10: $8.3558 100: $8.1 1000: $7.8442 10000: $7.5031	-	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	Current Loop Receiver	1	3750Vrms	1kV/µs	DC	25mA	1.6µs, 1µs	55ns, 15ns	-	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-DIP Gull Wing	CSA, UR	-	RFQ
MID400S OPTOISO 2.5KV OPN COLLECTOR 8SMD onsemi	16,534	1: $7.7504 10: $7.5954 100: $7.3629 1000: $7.1304 10000: $6.8204	-	Tube	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-SMD	UR	1.5 V	RFQ
MID400 OPTOISO 2.5KV OPN COLLECTOR 8DIP onsemi	18,269		-	Tube	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	UR	1.5 V	RFQ
MID400SD OPTOISO 2.5KV OPN COLLECTOR 8SMD onsemi	15,924	1: $6.2972 10: $6.1713 100: $5.9823 1000: $5.7934 10000: $5.5415	-	Tape & Reel (TR),Cut Tape (CT)	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-SMD	UR	1.5 V	RFQ
MID400WV OPTOISO 2.5KV OPN COLLECTOR 8DIP onsemi	10,343		-	Tube	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Through Hole	8-DIP (0.400, 10.16mm)	8-MDIP	UR, VDE	1.5 V	RFQ
PS9634 OPTOISO 5KV FOR IGBT DRIVER 8DIP CEL	18,356		-	Tube	Power Transistor Driver	1	5000Vrms	1kV/µs	DC	500mA, 800mA	5µs, 5µs	-	30 mA	5.4V ~ 15V	-20°C ~ 80°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	-	1.1 V	RFQ
MID400SDV OPTOISO 2.5KV OPN COLLECTOR 8SMD onsemi	14,718	1: $6.574 10: $6.4425 100: $6.2453 1000: $6.0481 10000: $5.7851	-	Tape & Reel (TR),Cut Tape (CT)	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-SMD	UR, VDE	1.5 V	RFQ
MID400V OPTOISO 2.5KV OPN COLLECTOR 8DIP onsemi	13,751		-	Tube	AC Line Monitor	1	2500Vrms	-	AC, DC	20mA	1ms, 1ms (Typ)	-	30 mA	7V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	UR, VDE	1.5 V	RFQ
HSSR-7111 OPTOISO 1.5KV POWER MOSFET 8DIP Broadcom	4,140	1: $117.41 10: $115.0618 100: $111.5395 1000: $108.0172 10000: $103.3208																			RFQ
HCPL-2602-000E OPTOISO 3.75KV LINE RX 8DIP Broadcom	19,028	1: $7.1526 10: $7.0095 100: $6.795 1000: $6.5804 10000: $6.2943																			RFQ
HCPL-4100-300E OPTOISO 3.75KV TRNSMTR 8DIP GW Broadcom	14,778	1: $9.8448 10: $9.6479 100: $9.3526 1000: $9.0572 10000: $8.6634	-	Tube	Current Loop Transmitter	1	3750Vrms	1kV/µs	Logic	30mA	1.6µs, 1µs	16ns, 23ns	-	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount	8-SMD, Gull Wing	8-DIP Gull Wing	CSA, UR	-	RFQ
HCPL-2612 OPTOISO 3.75KV LINE RX 8DIP Broadcom	14,942	1: $21.708 10: $21.2738 100: $20.6226 1000: $19.9714 10000: $19.103	-	Tube	Line Receiver	1	3750Vrms	3.5kV/µs	AC, DC	50mA	75ns, 75ns	24ns, 10ns	60 mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	2.3 V	RFQ
HCPL-2602 OPTOISO 3.75KV LINE RX 8DIP Broadcom	17,420	1: $7.08 10: $6.9384 100: $6.726 1000: $6.5136 10000: $6.2304	-	Tube	Line Receiver	1	3750Vrms	1kV/µs	AC, DC	50mA	75ns, 75ns	24ns, 10ns	60 mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole	8-DIP (0.300, 7.62mm)	8-DIP	CSA, UR	2.3 V	RFQ
